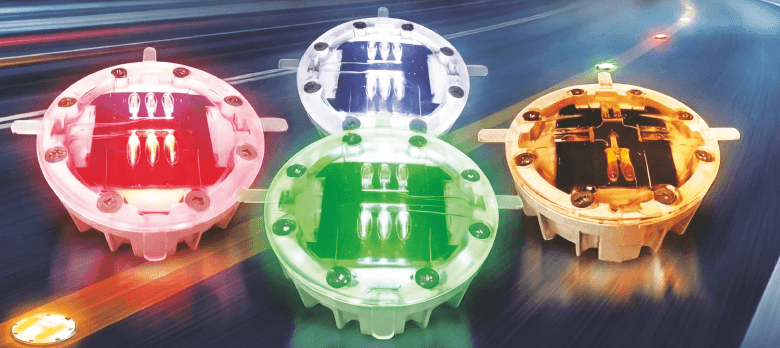

Embedded Solar LED Road Stud, with GPS technology
Embedded GPS Type integrated road reflectors serve as an effective alternative to conventional road markings that disappear during fog. Available in all colors, this technology ensures consistent, synchronized illumination with a visibility range exceeding 1000 meters, significantly enhancing safety under challenging weather conditions.
Embedded GPS Type Integrated Illuminated Road Reflectors (ST-S-LL-126X56-SOL-ST-CR) This technology serves as an effective alternative to conventional road markings, the visibility of which is significantly compromised during fog. These markings provide consistent, high-visibility illumination for drivers in all conditions, greatly enhancing traffic safety during challenging weather.
Have a question?
Contact us for a free consultation
Technical Performance:
GPS Technology: Features integrated GPS for synchronized flashing between units to create a guided visual path.
Visibility Distance: Provides clear visibility from distances exceeding 1000 meters.
Luminous Intensity: Delivers a brightness of 5000 millicandela (mcd).
Lighting Style: Supports both steady and flashing (2 Hz) lighting patterns.
Available Colors: Offered in a full range of colors: Red, Yellow, White, Blue, and Green.
Durability & Construction:
Pressure Resistance: Capable of withstanding mechanical loads up to 40 tons.
Build Quality: Constructed with an aluminum alloy housing, polycarbonate, and epoxy filling for maximum durability.
Weather Protection: Rated IP68 for water and dust resistance, functioning reliably in temperatures from -20°C to +70°C.
Power System & Warranty:
Solar Power: Equipped with a Monocrystalline Silicon solar panel (5V 120 mA).
Battery: Uses a 3.2V 1000 mAh Lithium battery with a lifespan exceeding 3 years.
Operating Duration: Operates for up to 100 working hours after a single full charge.
Standards & Warranty: Complies with EN IEC 61000-6-1: 2019 and EN IEC 61000-6-3: 2021 standards, backed by a 3-year warranty.
